The laser mirror catalogue divides by duty. The documented CO2 line is a silicon mirror with gold coating, sold as a beam reflector for CO2 laser machines. An optical scanning galvo mirror for CO2 lasers is a documented listing in the same mirror group. OEM optical glass silver coated reflective mirrors for laser processing are documented listings. Factory custom flat glass aluminium coated reflector mirrors are documented listings.
A round or square plano mirror with dielectric coating and high reflectivity is a documented listing. A customised dielectric coating 25.4 × 3 mm JGS1 glass reflector mirror — the one-inch format — is a documented listing. UV service is covered by a UV-enhanced aluminium coated reflector mirror listing. The lines on this page are the documented delivery, scanning and processing listings, each recorded with its documented construction.
Documented Laser Mirror Listings
| Listing (storefront) | Duty | MOQ |
|---|---|---|
| CO2 laser optical mirrors | Silicon substrate, gold coating, beam reflector | 10 pieces |

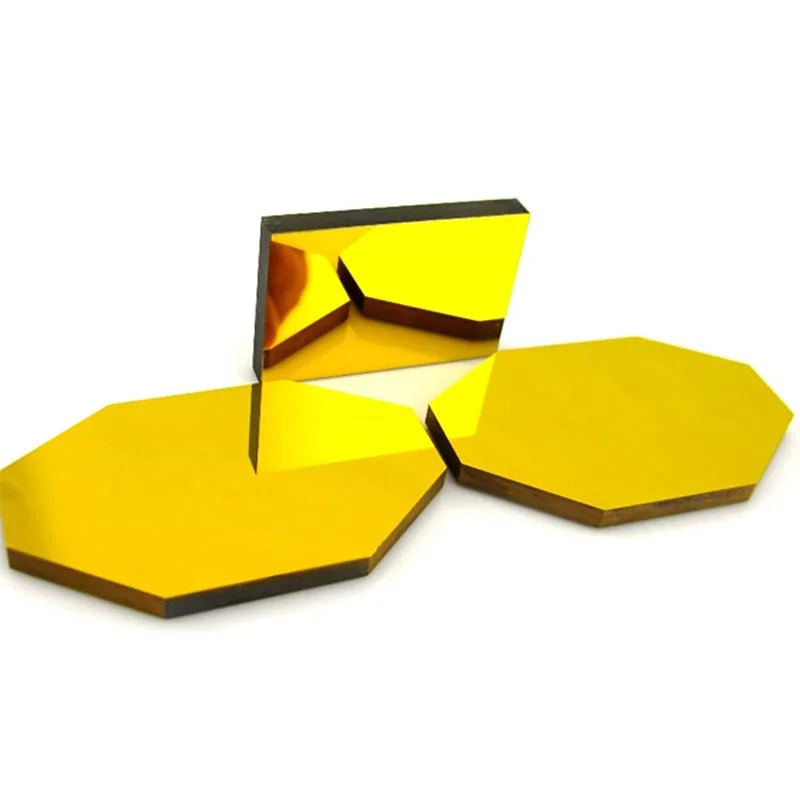

| Optical scanning galvo mirror | CO2 laser scanning heads | 10 pieces |
| Plano dielectric high-reflectivity mirror | Round or square, dielectric coating | 10 pieces |
| Dielectric reflector mirror 25.4 × 3 mm | JGS1 glass, one-inch format | 10 pieces |
| UV-enhanced aluminium reflector mirror | Ultraviolet service | 10 pieces |
| Silver coated reflective mirror | Laser processing, OEM optical glass | 10 pieces |
Specifying a Laser Mirror
Laser type and wavelength come first, power second, size third — in that order, because the coating is chosen for the first two and the substrate for all three. Galvo mirrors additionally need the mirror size that matches the scan head and beam diameter. If the mirror is part of a CO2 delivery set, the CO2 laser lenses page covers the ZnSe focusing optics the beam meets next, and the general optical mirrors page covers the non-laser coating families.
Frequently Asked Questions
Which mirror suits a CO2 laser?
The documented CO2 construction is a silicon substrate with gold coating. State the machine's power and the mirror diameter when you enquire.
What size is the documented JGS1 reflector?
A 25.4 mm diameter × 3 mm JGS1 dielectric reflector is a documented listing — the one-inch format.
What is the minimum order?
10 pieces across the documented laser mirror listings.
Damage Threshold Thinking Without the Datasheet Fiction
The honest way to buy a laser mirror against power is to state the power, the beam diameter on the mirror and the duty — continuous or pulsed — and let the construction answer it, rather than shopping for a threshold number detached from your beam. The same coating survives very different service at different spot sizes, because what damages films is power density and absorbed energy, not the headline wattage. The documented listings on this page are: the CO2 laser optical mirror with silicon gold coating; round or square plano dielectric coating high-reflectivity mirrors; and the UV-enhanced aluminium coated reflector mirror. Galvo mirrors add a mechanical clause to the same conversation — they must stay flat while accelerating — so their size should not exceed what the scanner's motors are specified to swing. State the scanner model for galvo orders and the beam geometry for fixed mirrors, and the quotation is written against the part as it will actually sit in the beam.
Request a Quotation
Tell us the component, material, dimensions and coating you need. Pricing and lead time for your specification are confirmed in the written quotation.
